Pigtail Cable

Low Cost Fiber Optic Pigtail SC/UPC Single Mode 9/125

Price：USD $ 0.30

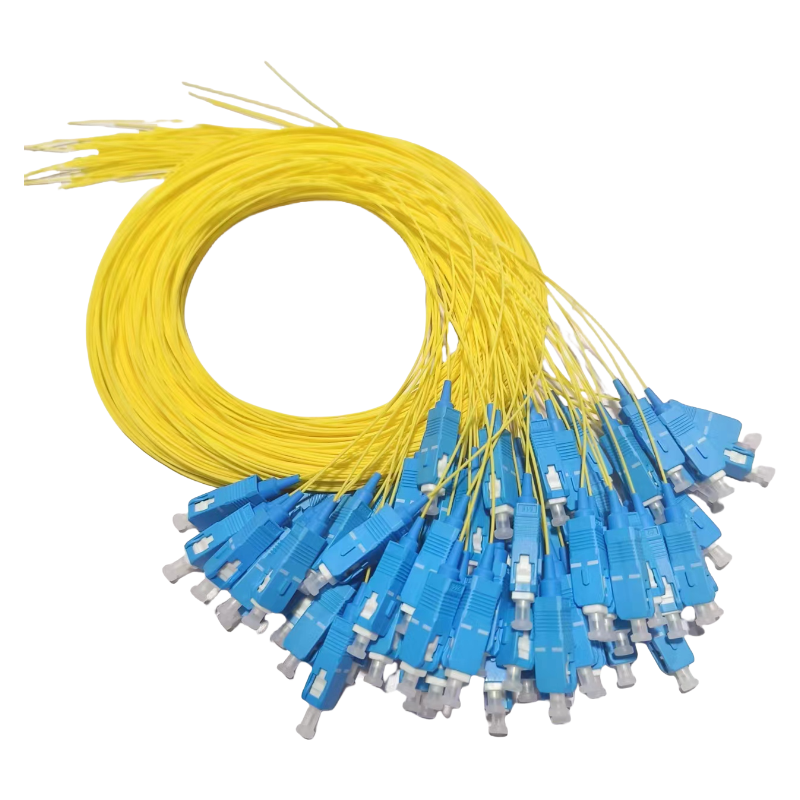

High Quality Low Cost Fiber Optic Pigtail SC/UPC Single Mode 9/125 -0.9mm

Optical fiber pigtails have only one end pre-connected to the connector (sc/lc/fc/st), and the other end is optical bare fiber. They are used in terminal boxes or patch panels connect the main optical cable through the fusion splicer.

Fiber Pigtail Datesheet

Fiber Pigtail
Cable Jacket	Yellow LSZH
Fiber type	G652D,G657A1,G657A2
Cable Diameter	0.9mm
Connector Options	LC, SC, ST, FC (Customizable)
Fiber Termination	LC、SC、FC single mode, YDT 2617-2013
Connector Insertion Loss	UPC(SM): Max. 0.30 dB/0.2dB/0.1dB
(according to YDT 2617-2013)	APC(SM): Max. 0.25 dB/0.2dB/0.1dB
Connector Return Loss	UPC(SM): Min. 50 dB
(according to YDT 2617-2013)	APC(SM): Min. 60 dB

Fiber Pigtail Options

Fiber type:Single mode fiber
Fiber color:yellow,white,blue...
Fiber pigtail lengty:1m,1.5m...
Fiber connecotor:SC,LC,FC,ST
Fiber Jacket:PVC ,LSZH
Insertion loss:≤0.3db,≤0.2dB,≤0.1dB
