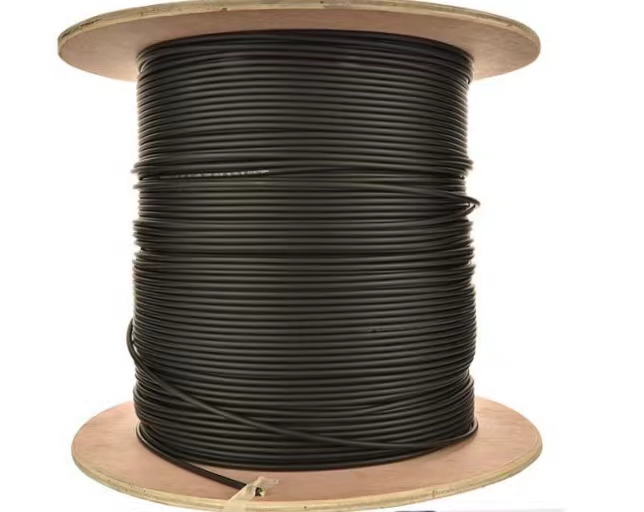

4 Core SM Outdoor Armored Fiber Optic Cable 1000m 4.5mm TPU

Discover the 4 Core Singlemode Outdoor Armored Fiber Optic Cable, featuring a robust black TPU jacket for exceptional durability and high-performance connectivity. Ideal for harsh outdoor environments, this cable ensures reliable data transmission with resistance to elements and mechanical stress. Perfect for Outdoor field,tactical,military,and emergency repair fiber optic solutions.

Application

*Optical Patch cords
*Outdoor field cable/Tactical
*Emergency repairing
*Music event
*broading cast live
* Multi-Medium Networks,
*Military

Options:

rmored fiber patch cord
armored fiber optic cable
LC fiber patch cord

SC  fiber patch cord
single mode fiber patch cord
MPO fiber cable

Indoor Project

fiber optic cable for data center
fiber optic cable for telecom
fiber cable for FTTH
fiber cable for 5G base station
data center fiber cable

Outdoor Project

tactical fiber cable
broadcast fiber cable
military fiber cable
industrial armored fiber cable
harsh environment fiber cable

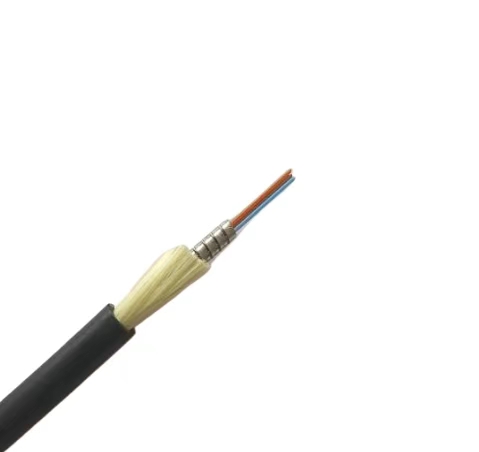

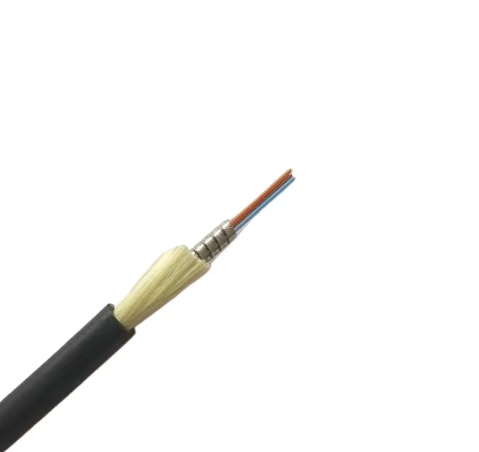

Technical Features

*Metal Tube Protection

Reinforced stainless steel metal tubing safeguards high-speed network infrastructure against physical damage.

*Animal Damage Resistance

Engineered to prevent rodent/animal biting and chewing, ensuring reliable outdoor/indoor deployment.

*Superior Mechanical & Environmental Performance

High tensile stress and anti-pressure.Soft, bend-insensitive structureCompliant with harsh environments

Customizable Functionality

Tailored solutions to meet diverse customer requirements (e.g., armor type, jacket materials).

Universal Connector Compatibility,Supports all major connector types: FC, ST, LC, MPO MTP, etc.

High-Density Cabling Capability

Specification

Parameter	Specification
Cable Type	4 Core Singlmode Outdoor Armored Fiber Optic Cable
Cable Count	4 Core
Fiber Type	Single-Mode(OS2): 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ4.5 ± 0.2 mm，6.0 ± 0.25 mm
Jacket Material	TPU, RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	≥ 800 N (Short-Term)
	≥ 600 N (Long-Term)
Crush Resistance	≥ 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
TPU Jacket	Rodentproof,UV-Proof
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC (Customizable)
Cable Weight	27.5kg/km
