Outdoor armored fiber cable

  • TPU 2 Core Tactical Fiber Optic Cable

TPU 2 Core Tactical Fiber Optic Cable

TPU 2 Core Tactical Fiber Optic Cable

The TPU 2 Core Tactical Fiber Optic Cable is designed for rugged environments, offering superior durability and flexibility. Perfect for military, industrial, and outdoor applications, this lightweight cable features two core fibers for optimal signal transmission, ensuring high-speed data transfer and reliability. With its robust construction, it can withstand extreme conditions while maintaining performance, making it an ideal choice for tactical operations and telecommunications.

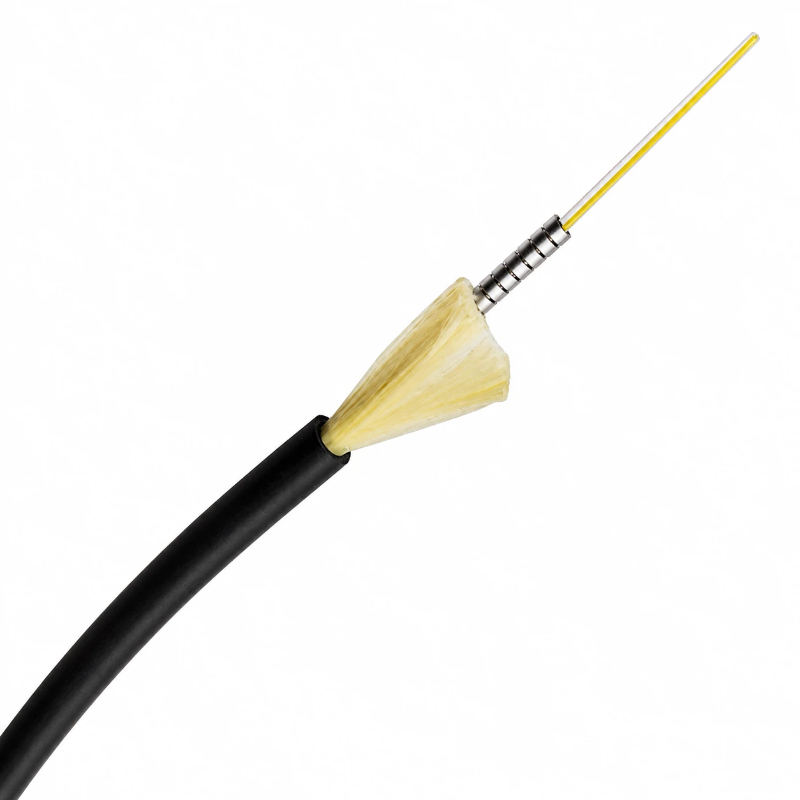

Tactical ofc cable Structures (2f,4f,8f,12f)

2 Core Tactical Fiber Optic Cable specification

Parameter Specification
Cable Type TPU 2 Core Tactical Fiber Optic Cable
Cable Count 2 Core
Fiber Type Single-Mode(OS2): 9/125 µm
Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter Φ4.0 ± 0.1 mm
Jacket Material TPU, RoHS-Compliant
Armor Type Stainless Steel armor
Tensile Strength ≥ 600 N (Short-Term)
≥ 300 N (Long-Term)
Crush Resistance ≥ 3000 N/10 cm
Bending Radius Dynamic: 20x Cable Diamete
Static: 10x Cable Diameter
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
TPU Jacket Rodentproof,UV-Proof
Attenuation Single-Mode:1310 nm @ 1550 nm
Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth Multi-Mode: ≥ 200 MHz·km @ 850
≥ 500 MHz·km @ 1300 nm

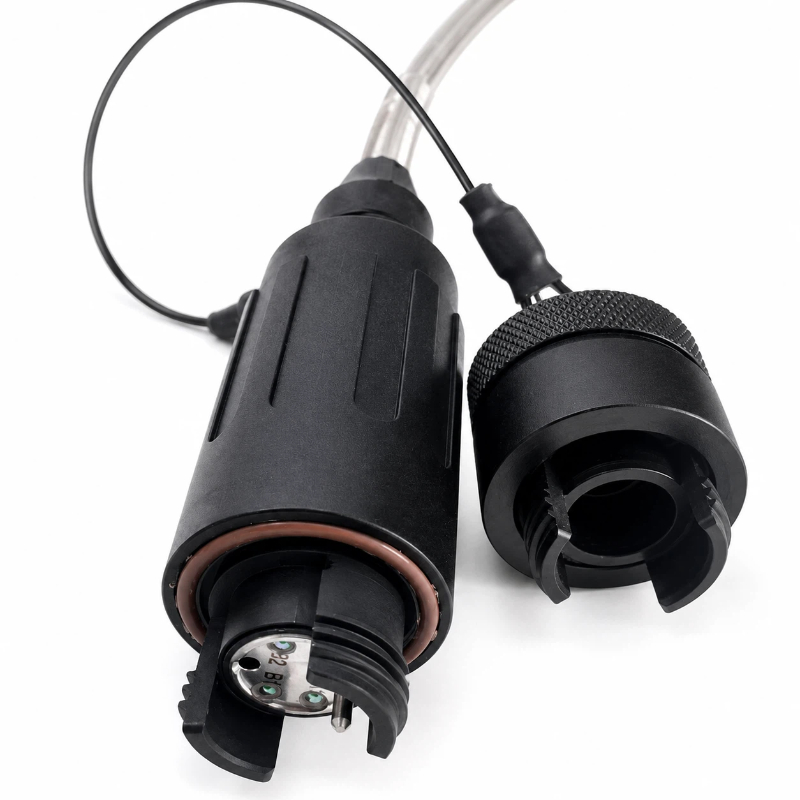

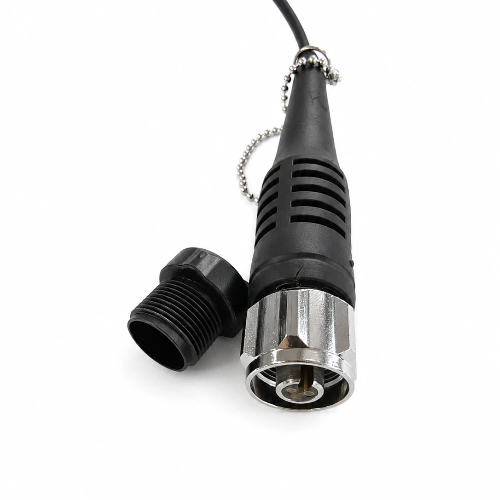

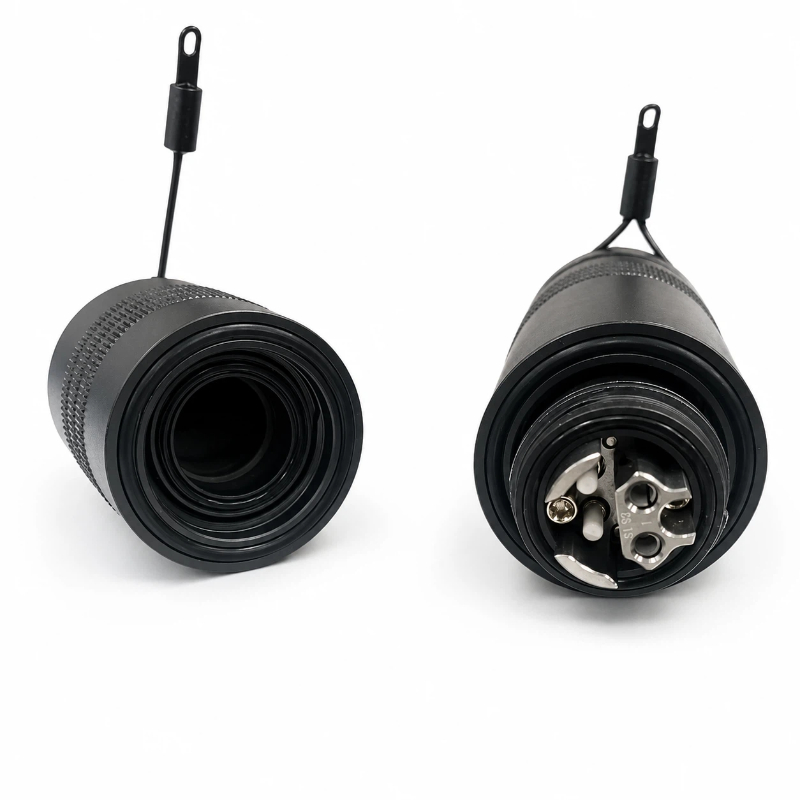

Connector Options LC, SC, ST, FC (Customizable)
Cable Weight 20.5kg/km


*Cable Jacket:Black TPU

*Cable OD:4.0mm

*Special Application:Outdoor Emergency,Live,Field,Military

*Box Size:46*46*47.Weight:22kgs/CTN,Length:1km/Roll

*20GP container:about 260CTNS

.



TPU armored fiber optic cable stands out as the optimal choice for tactical needs—and this isn’t just our view. Time and again, our clients’ real-world usage has proven it true.
