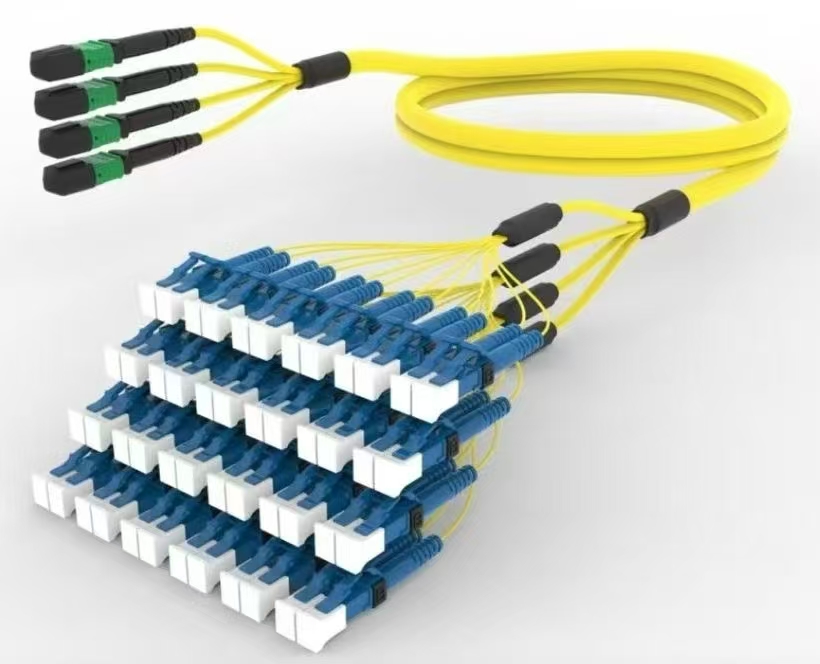

MPO-24 36 48 Fiber Armored Optical Cable

The MPO-24 Fiber Armored Optical Cable is a high-performance 24f (24-core) solution integrated with premium armored fiber structure—by combining the MPO connector with robust armoring, the cable gains enhanced sturdiness and impact resistance, effectively reinforcing the MPO connection’s durability to avoid damage from external forces. Designed for both indoor and outdoor applications, it adapts to diverse scenarios (such as data centers, outdoor communication networks, and industrial facilities) while maintaining stable signal transmission. As a reliable armored fiber option, it balances 24-core high-density connectivity with long-lasting structural strength, meeting the demands for toughness and versatility in modern fiber optic systems.

MPO Connectors: Types, Design Features & Loss Classifications

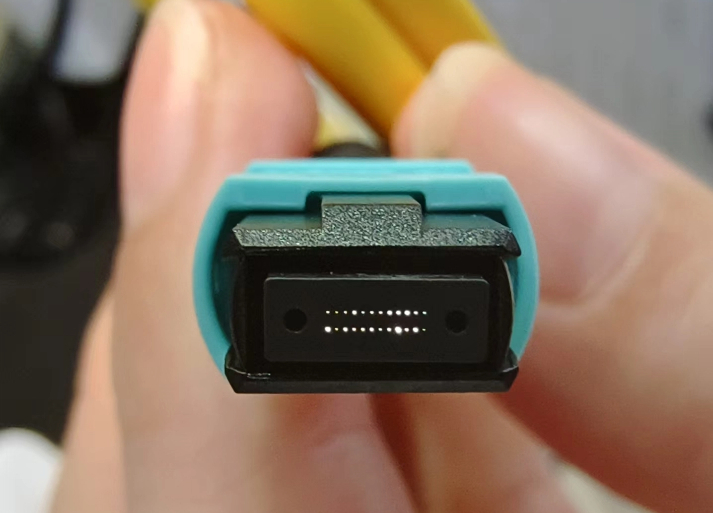

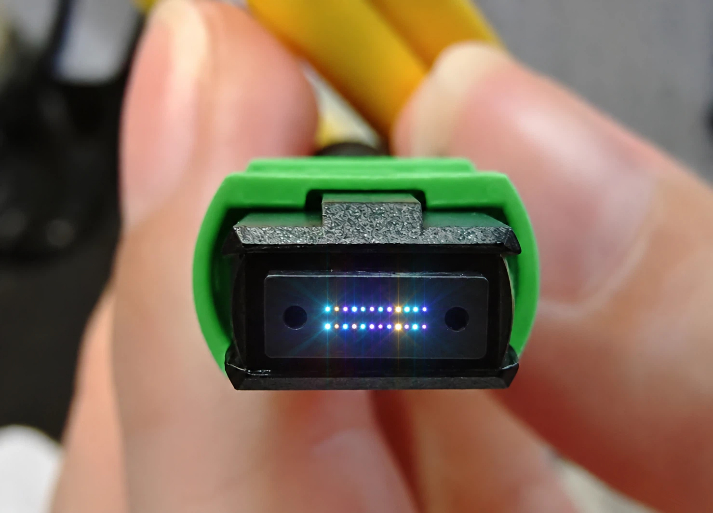

MPO connectors are designed with two main types to ensure proper mating and alignment: male connectors (equipped with pins) and female connectors (without pins). Notably, the MPO interface on active equipment is almost exclusively male, a standard configuration that streamlines compatibility across different devices.

In terms of structural design, MPO connectors have two key identifying features: a key on one side of the connector body (which guides accurate alignment during connection) and a white dot—this dot serves as a visual marker to indicate the position of the first fiber, simplifying installation and reducing misalignment risks.

When it comes to performance, the loss of MPO connectors can be categorized into two classes: low loss and standard loss This classification allows users to select the right MPO connector based on their specific performance requirements, ensuring optimal efficiency and cost-effectiveness.

Options

single mode fiber optic cable
G652D fiber cable
G657A1 fiber cable
G657A2 fiber cable

multimode fiber optic cable

OM3 fiber patch cord
OM4 fiber patch cord
OM5 fiber cable

Application

fiber optic cable for data center
fiber optic cable for telecom network
fiber cable for 5G base station
fiber cable for broadband network
fiber cable for FTTH

fiber cable for ODF fiber distribution frame
fiber cable for fiber optic patch panel
fiber optic cable for fiber distribution box

MPO MTP Trunk Cable /Fiber Patch Cord Parameter

Item	Multimode		Single-mode
	(PC)		(APC)
Insertion Loss(IL)	Standard Loss	Reduced Loss	Standard Loss	Reduced Loss
	≤0.5dB	≤0.3dB	≤0.7dB	≤0.35dB
Return Loss Return Loss(RL)	≥25dB		≥60dB
Operating Temperature(℃)	-40~+85
Testing Wavelength(NM)	850/1300		1310/1550

Fiber Type vs. Transmission Distance by Data Rate (Unit: meters)

Fiber Type	1GB	10GB	40GB	100GB	Notes
OM1 (Multimode)	275m	33m	-	-	-
OM2 (Multimode)	550m	82m	-	-	Basically obsolete in the industry
OM3 (Multimode)	550m	300m	100m	70m	-
OM4 (Multimode)	-	550m	150m	150m	Compatible with OM3
OM5/SWDM (Multimode)	-	550m	150m	150m	Wavelength 850-900nm; compatible with OM4
9/125SM (Singlemode)	5000m	10000m	-	-	Supports longer transmission distances
